Hot Water Washdown Hose Assembly

View 2 more images

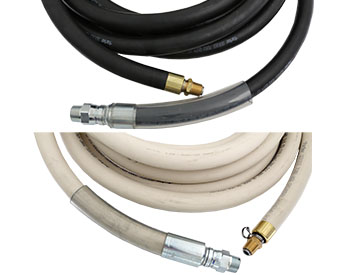

Cost effective, high-quality hot water washdown hose assemblies designed to complement the HCS and HCX Water Washdown Stations for use in washdown applications in industrial and chemical plants. Hoses are available in Black General Purpose or White Creamery.

Not rated for steam use. For steam hoses see Black Washdown Hose (Steam) or White Creamery Washdown Hose (Steam).

Design Features

  • 4 ply textile reinforcement
  • EPDM tube and cover
  • Brass and Zinc plated steel swivel fittings
  • Strain relief on station end

Ordering

PART NUMBER

DESCRIPTION

PART NUMBER

DESCRIPTION

940 - 000100 - 025

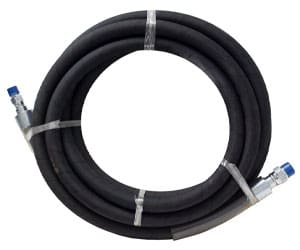

25 Ft. Black Hose Assembly

940 - 100100 - 025

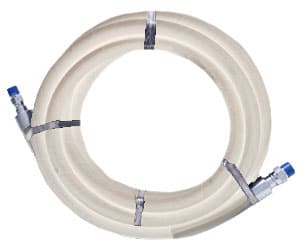

25 Ft. White Creamery Hose Assembly

940 - 000100 - 050

50 Ft. Black Hose Assembly

940 - 100100 - 050

50 Ft. White Creamery Hose Assembly

940 - 000100 - 075

75 Ft. Black Hose Assembly

940 - 100100 - 075

75 Ft. White Creamery Hose Assembly

Specifications

  • Sizes: 25ft, 50ft, 75ft
  • ½” MNPT x ¾” MNPT end connections
  • Maximum Operating Pressure: 300 PSIG (20.7 BAR)
  • Maximum Operating Temperature: 200°F (93.3°C)

Resources

Hot Water Washdown Hose Product Sheet
Washdown Brochure
